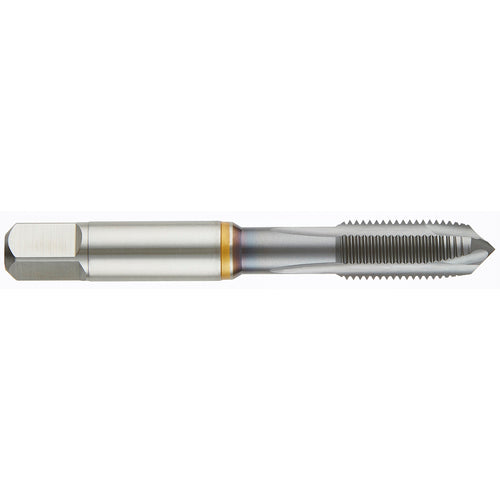

5/16-24 H3 COB PLUG
Item #: GD1544063079380
Brand: Guhring
Model #: 9044063079380
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Cutting Edge Material | HSS-E |
| Thread Size | 5/16″ - 24 |
| Tool Type | Spiral Point |
| Thread Diameter Size (TDZ) | 5/16″ |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Threads per Inch (TPI) | 24 |
| Thread Cutting Part Length (THL) | 0.709″ |
| Thread Tolerance Class (TCTR) | H3 |
| Flute Length | 0.709″ |
| Overall Length (OAL) | 2.72″ |
| End Shape | Spiral Point |
| Chamfer | Plug |
| Style | Plug |
| Coating | TiCN |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Series/List # | 4406 |
