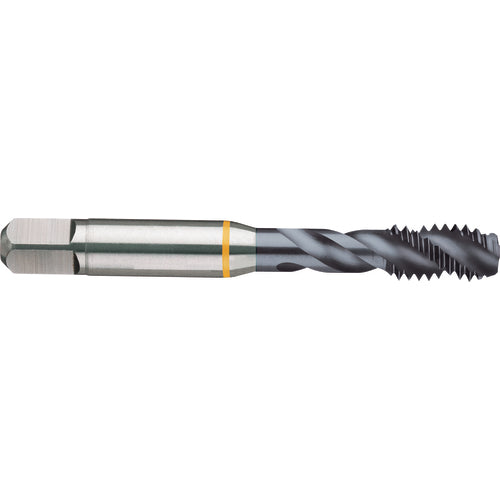

M4X0.70 D4 Cob Powertap Sbott-Ticn
Item #: GD1544120040000
Brand: Guhring
Model #: 9044120040000
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M4 |
| Thread Tolerance Class (TCTR) | D4 |
| Thread Pitch (TP) | 0.7 mm |
| Chamfer | 2-3 Form C |
| Thread Standard | Metric |
| Coating | TiCN |
| Overall Length (OAL) | 2.1299″ |
| Flute Length | 0.2953″ |
| Thread Cutting Part Length (THL) | 0.827″ |
| Flute Type | Spiral |
| Usable Length (LU) | 0.827″ |
| Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Coolant Supply Property (CSP) | without |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 40 Degrees |
| Series/List # | 4412 |
| Cutting Edge Material | HSS-E |
