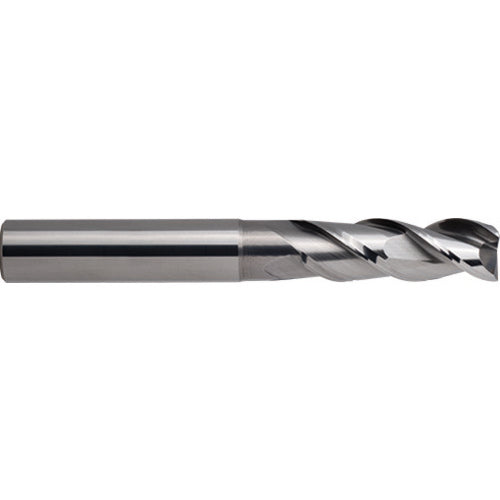

9067300160000 RF100 A EM
Item #: GD1667300160000
Brand: Guhring
Model #: 9067300160000
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Flute Helix Angle (FHA) | 35 Degrees | 40 Degrees | 41 Degrees |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Shank Type | HA cylindrical |
| Depth of Cut Maximum (APMX) | 48 mm |
| Corner Chamfer Width (CHW) | 0.16 mm |
| Overall Length (OAL) | 108 mm |
| Neck Diameter (DN) | 15.5 mm |
| Cutting Edge Material | Carbide |
| Neck Length (LN) | 58 mm |
| Coating | Uncoated |
| Tool Type | Aluminum |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
