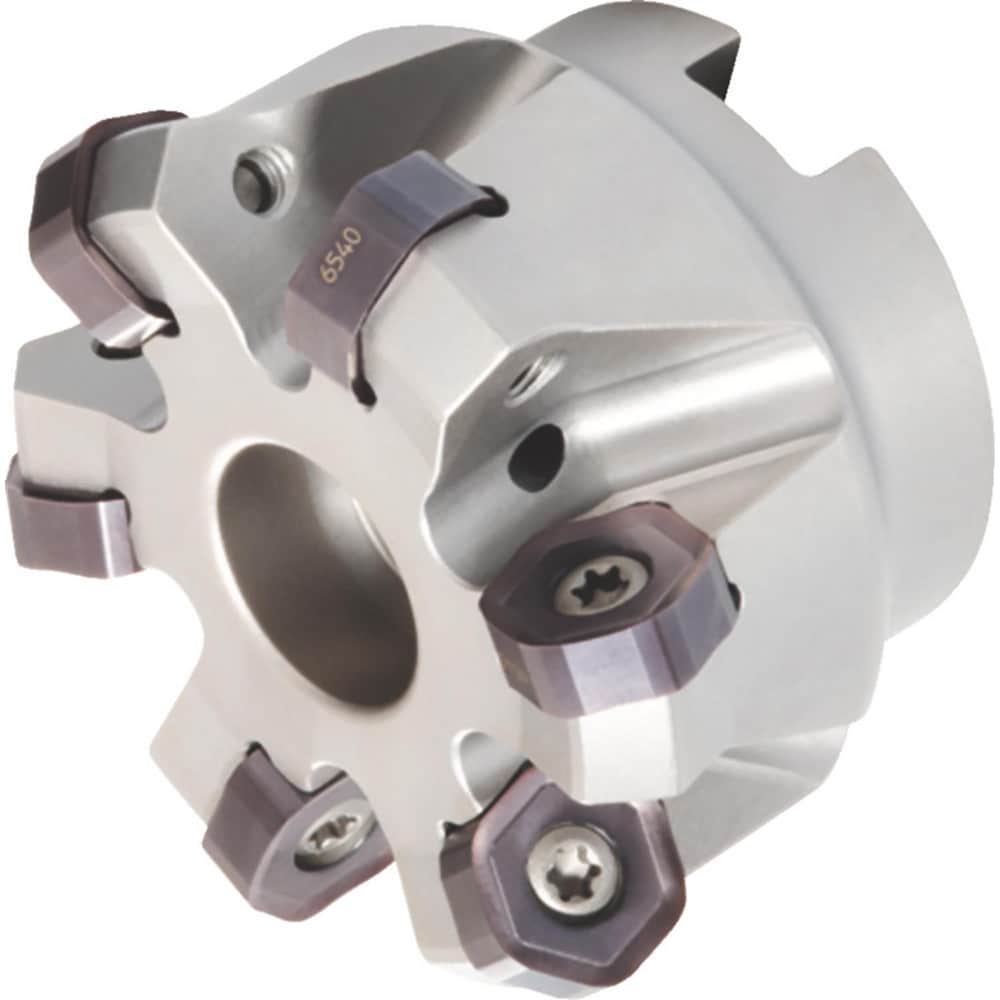

Brand: Widia / Part #: 3957995
Item #: 97730089
Brand: Widia
Model #: 3957995
Product Specifications
| Minimum Cutting Diameter (mm) | 40.00 |
| Maximum Cutting Diameter (mm) | 48.72 |
| Maximum Depth of Cut (mm) | 3.50 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 45.000 |
| Compatible Insert Size Code | HN..0704 |
| Cutter Style | M1200 Mini |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | M1200 Mini |
| Hub Diameter (mm) | 38.000 |
| Overall Height (Mm - 5 Decimals) | 40.00000 |
| Maximum Body Diameter (mm) | 45.94 |
| Maximum RPM | 15800.000 |
| Tool Application | Chamfering; Facing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Complete Insert Compatibility | HNGJ0704ANENLD |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Number Of Flutes | 4 |
