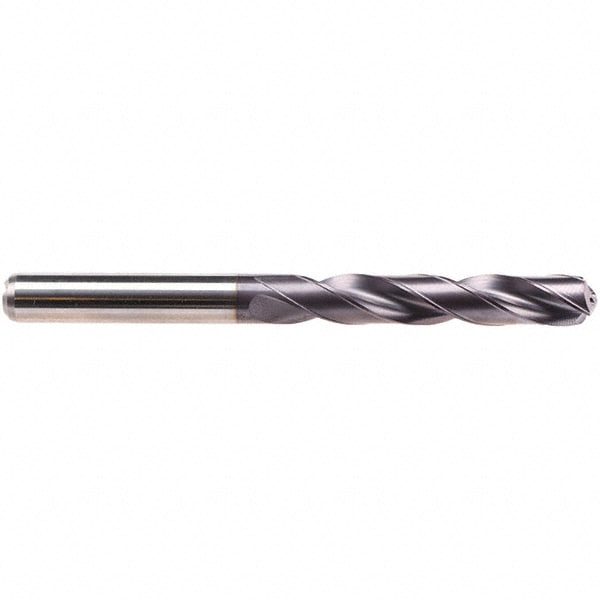

Brand: Emuge / Part #: TA219744.0445

Brand: Emuge / Part #: TA219744.0445


Item #: 99356636
Brand: Emuge
Model #: TA219744.0445

Product Specifications

Drill Bit Size (Decimal Inch) 0.1752
Drill Bit Size (mm) 4.45
Drill Bit Material Solid Carbide
Cutting Direction Right Hand
Drill Bit Finish/Coating TiAlN
Drill Point Angle (Degrees) 140
Spiral Type Regular
Flute Type Spiral
Point Type Self Centering
Coolant Through Yes
Shank Type Straight-Cylindrical
Number of Flutes 2
Shank Diameter (Decimal Inch) 0.2362
Overall Length (mm) 74.0000
Overall Length (Decimal Inch) 2.9134
Flute Length (mm) 36.00
Flute Length (Decimal Inch) 1.4173
Series TA219744
Flute Length x Diamter Ratio 5xD
Flute By Diameter Ratio 5xD
Shank Diameter (mm) 6.0000
Maximum Drilling Depth (Decimal Inch) 1.1417
Maximum Drilling Depth (mm) 29.00
Shank Length (mm) 36.000
Shank Length (Decimal Inch) 1.4173
Drill Point Length (mm) 0.90
Drill Bit Diameter Tolerance m7
Web Thinning Web-Thinned
Web Configuration Tapered
Tool Performance High Performance
Specification Number DIN 6537 L
Double Margin Yes
Drill Bit Grade High Performance
Material Grade Sub Micrograin
Specification Designation DIN
$ 77.87
