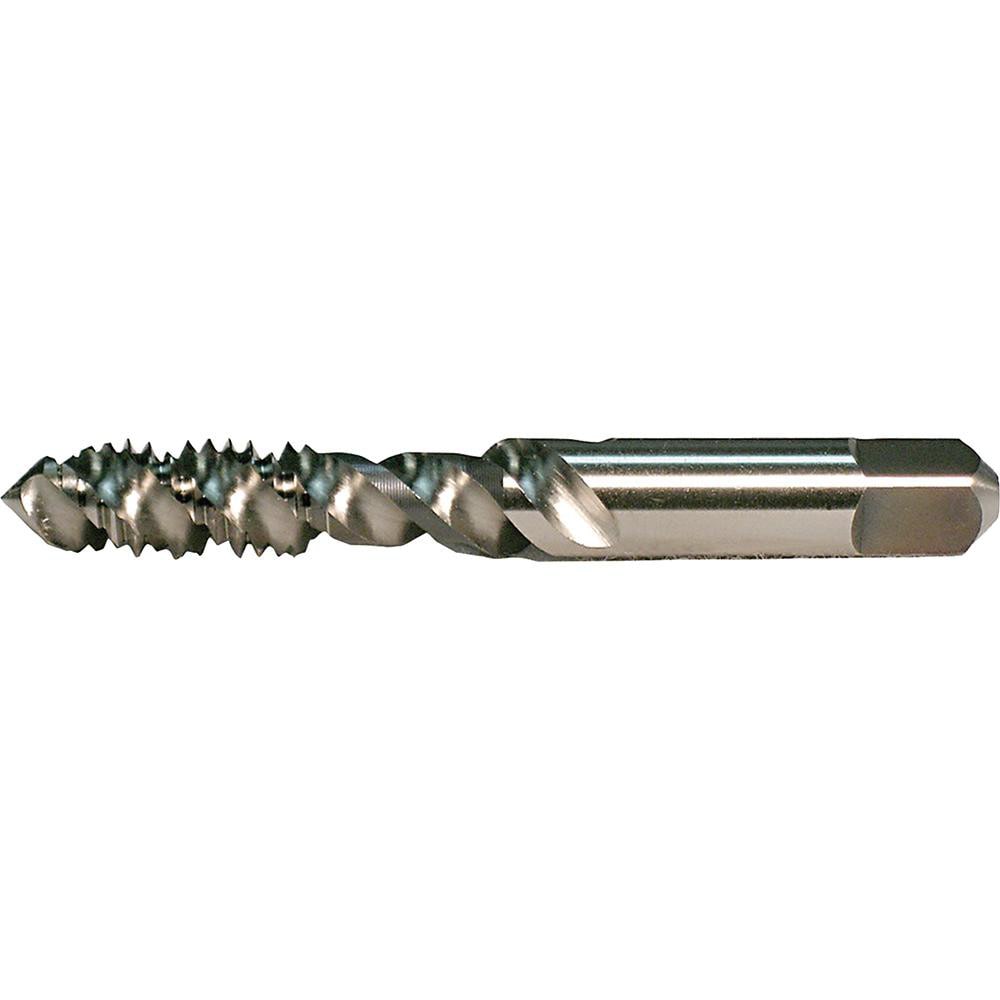

Brand: Widia / Part #: 2746484
Item #: 97432496
Brand: Widia
Model #: 2746484
Product Specifications
| Thread Size (Inch) | #4-40 |
| Chamfer | Plug |
| Thread Limit | H2 |
| Class Of Fit | 3B |
| Number Of Flutes | 2 |
| Material | High Speed Steel |
| Threads per Inch | 40 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.5610 |
| Overall Length (Decimal Inch) | 1.8750 |
| Thread Depth (Decimal Inch) | 0.5610 |
| Thread Pitch (Decimal Inch) | 0.0250 |
| Thread Standard | UNC |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1100 |
| Material Application | Steel |
| Series | 2314 |
