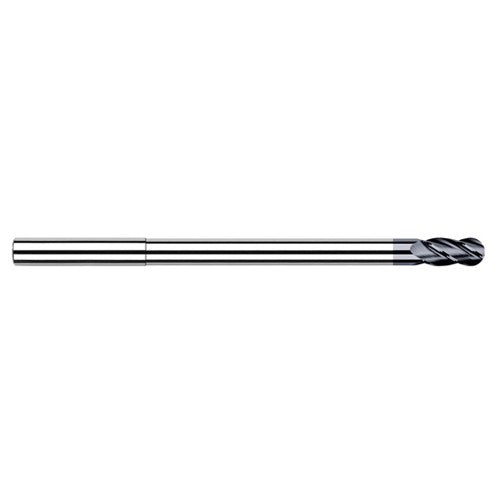

1/2″ Dia. × 1/2″ Shank × 3/4″ DOC × 8″ OAL, Carbide AlTiN, Stub , 4 Flute, Ballnose End Mill
Item #: GE9014932C3
Brand: Harvey Tool
Model #: 14932-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Usable Length (LU) | 5-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Length Group | Long Reach |
| Depth of Cut Maximum (APMX) | 3/4″ |
| End Shape | Ball Nose |
| Overall Length (OAL) | 8″ |
| Flute Type | Stub |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5″ |
| Coating | AlTiN |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
