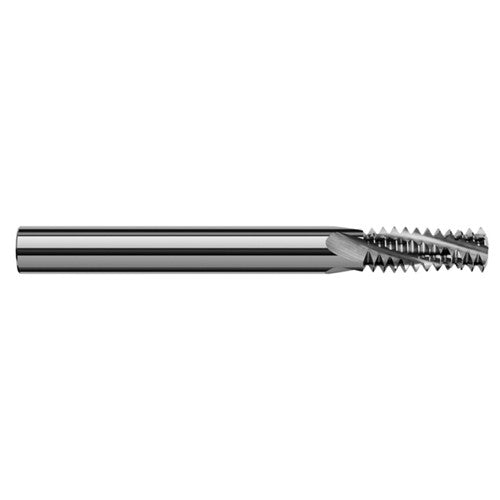

0.1200″ Cutter Diameter × 0.3120″ (5/16″) Length of Cut Carbide Multi-Form M5-0.80 Thread Milling Cutter, 3 Flutes
Item #: GE9016911
Brand: Harvey Tool
Model #: 16911
| Product Specifications | |
|---|---|
| Thread Size | M5 |
| Coating | Uncoated |
| Thread Pitch (TP) | 0.8 mm |
| Flute Helix Angle (FHA) | 60 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.12″ |
| Usable Length (LU) | 5/16″ |
| Overall Length (OAL) | 2″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Tool Type | Multi-Form |
| Shank Type | Round |
