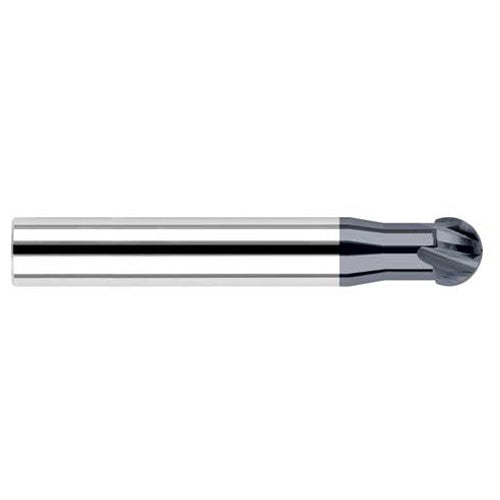

Undercutting End Mills - 0.1250″ (1/8″) Cutter Diameter × 0.1250″ (1/8″) Neck Length × 220° Carbide Undercutting End Mill, 4 Flutes, AlTiN Coated
Item #: GE9022708C3
Brand: Harvey Tool
Model #: 22708-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| Usable Length (LU) | 0.209″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Corner Radius (RE) | 1/16″ |
| Depth of Cut Maximum (APMX) | 0.084″ |
| Neck Length (LN) | 1/8″ |
| Overall Length (OAL) | 1-1/2″ |
| End Shape | Spherical |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.125″ |
| Coating | AlTiN |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
