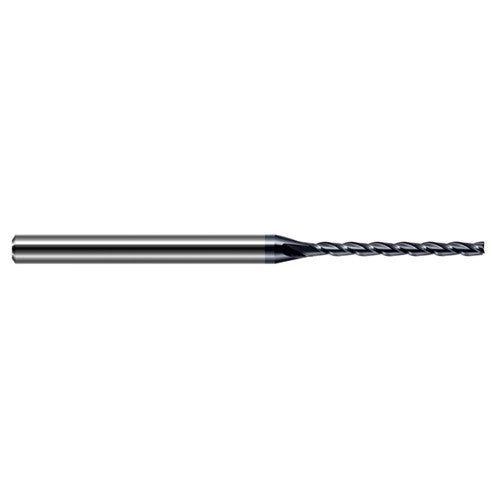

Miniature End Mills - Long Flute - 0.1406″ (9/64″) Cutter Diameter × 0.7500″ (3/4″) Length of Cut Carbide Square End Mill, 4 Flutes, AlTiN Coated
Item #: GE9031909C3
Brand: Harvey Tool
Model #: 31909-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 9/64″ |
| Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Length Group | 5D |
| Overall Length (OAL) | 3″ |
| Decimal Equivalent | 0.140625″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | AlTiN |
