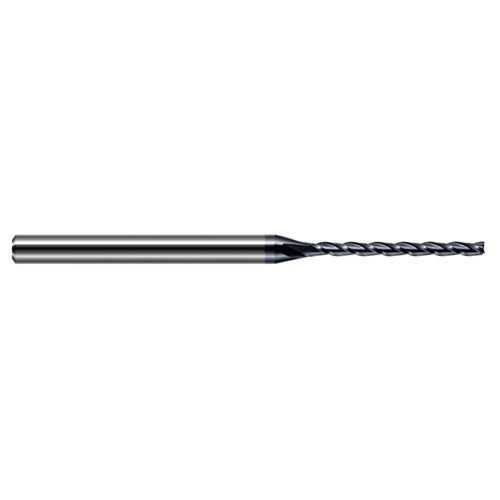

Miniature End Mills - Long Flute - 0.1090″ (7/64″) Cutter Diameter × 0.9000″ Length of Cut Carbide Square End Mill, 3 Flutes, AlTiN Coated
Item #: GE9033702C3
Brand: Harvey Tool
Model #: 33702-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 7/64″ |
| Flute Count (NOF) | 3 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 0.9″ |
| Length Group | 8D |
| Overall Length (OAL) | 2-1/2″ |
| Decimal Equivalent | 0.109375″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | AlTiN |
