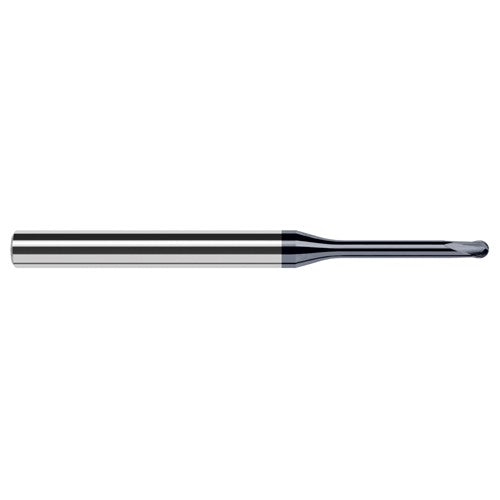

1/16″ Dia. × 1/4″ Shank × 0.05″ DOC × 2-1/2″ OAL, Carbide AlTiN, 2 Flute, Ballnose End Mill
Item #: GE9037862C6
Brand: Harvey Tool
Model #: 37862-C6
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/16″ |
| Usable Length (LU) | 3/32″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Applicable Material | Hard Materials |
| Depth of Cut Maximum (APMX) | 0.05″ |
| Length Group | 1.5D |
| Overall Length (OAL) | 2-1/2″ |
| End Shape | Ball Nose |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0625″ |
| Coating | AlTiN |
| Measurement Type | Inch |
| Flute Count (NOF) | 2 |
