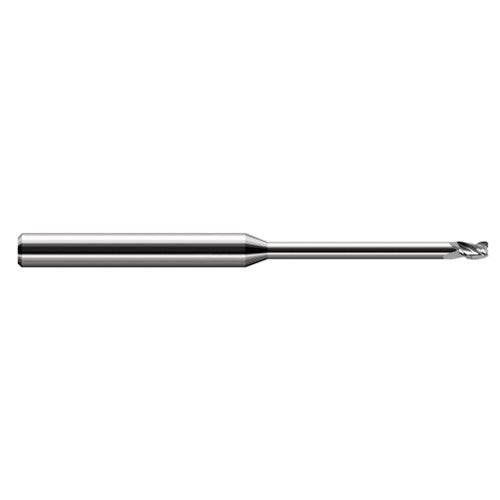

Miniature End Mills - Long Reach, Stub Flute - 0.0930″ (3/32″) Cutter Diameter × 0.0300″ Radius × 0.1390″ Length of Cut × 0.7500″ (3/4″) Reach Carbide Corner Radius End Mill, 3 Flutes
Item #: GE9042393
Brand: Harvey Tool
Model #: 42393
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/32″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Usable Length (LU) | 3/4″ |
| Depth of Cut Maximum (APMX) | 0.139″ |
| Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 2-1/2″ |
| Length Group | 8D |
| Cutting Edge Material | Carbide |
| Flute Type | Stub |
| Coating | Uncoated |
| Decimal Equivalent | 0.09375″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
