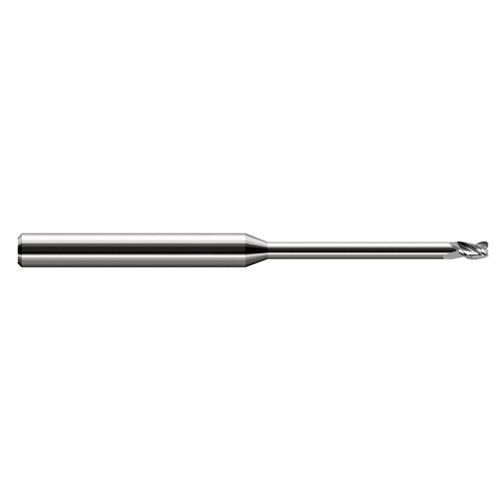

Miniature End Mills - Long Reach, Stub Flute - 0.1562″ (5/32″) Cutter Diameter × 0.0150″ (1/64″) Radius × 0.2340″ (15/64″) Length of Cut × 1.2500″ (1-1/4″) Reach Carbide Corner Radius End Mill, 3 Flutes
Item #: GE9043010
Brand: Harvey Tool
Model #: 43010
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/32″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Usable Length (LU) | 1-1/4″ |
| Depth of Cut Maximum (APMX) | 15/64″ |
| Corner Radius (RE) | 1/64″ |
| Overall Length (OAL) | 3″ |
| Length Group | 8D |
| Cutting Edge Material | Carbide |
| Flute Type | Stub |
| Coating | Uncoated |
| Decimal Equivalent | 0.15625″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
