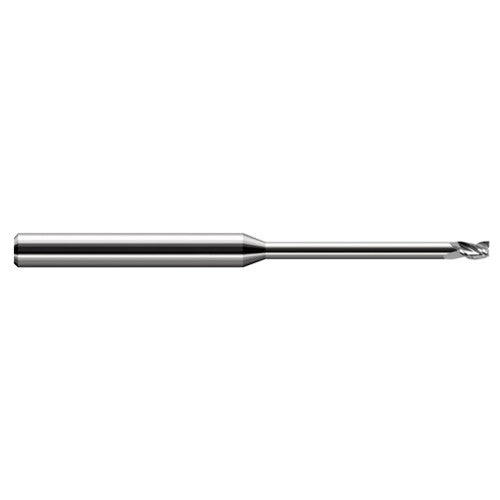

Miniature End Mills - Long Reach, Stub Flute - 0.1875″ (3/16″) Cutter Diameter × 0.2810″ (9/32″) Length of Cut × 2.8120″ (2-13/16″) Reach Carbide Square End Mill, 3 Flutes
Item #: GE9049012
Brand: Harvey Tool
Model #: 49012
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Usable Length (LU) | 2-13/16″ |
| Depth of Cut Maximum (APMX) | 9/32″ |
| Length Group | 15D |
| Overall Length (OAL) | 4″ |
| Flute Type | Stub |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1875″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
