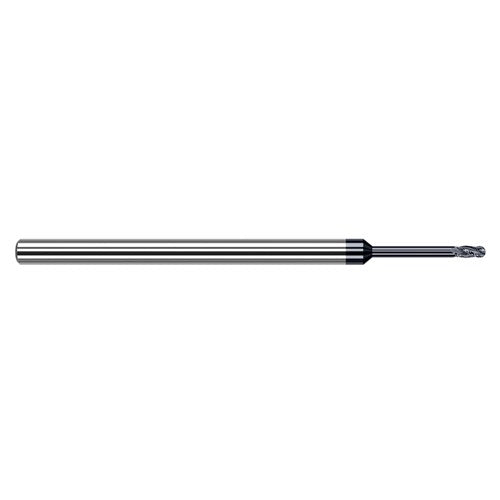

5/32″ Dia. × 3/16″ Shank × 15/64″ DOC × 3″ OAL, Carbide AlTiN, Stub , 4 Flute, Ballnose End Mill
Item #: GE9056710C3
Brand: Harvey Tool
Model #: 56710-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/32″ |
| Usable Length (LU) | 1-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Applicable Material | Steel |
| Depth of Cut Maximum (APMX) | 15/64″ |
| Length Group | 8D |
| Overall Length (OAL) | 3″ |
| End Shape | Ball Nose |
| Cutting Edge Material | Carbide |
| Flute Type | Stub |
| Coating | AlTiN |
| Decimal Equivalent | 0.15625″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
