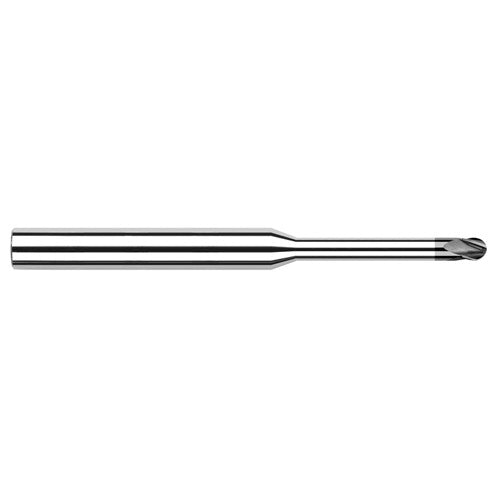

1/8″ Dia. × 1/8″ Shank × 3/16″ DOC × 2-1/2″ OAL, CVD Diamond, Stub , 4 Flute, Ballnose End Mill
Item #: GE9061108
Brand: Harvey Tool
Model #: 61108
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| Usable Length (LU) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Depth of Cut Maximum (APMX) | 3/16″ |
| Length Group | 5D |
| Overall Length (OAL) | 2-1/2″ |
| End Shape | Ball Nose |
| Cutting Edge Material | CVD |
| Flute Type | Stub |
| Coating | Diamond |
| Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
