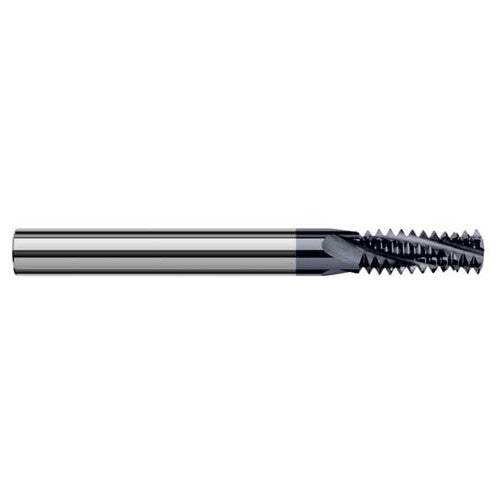

0.2850″ Cutter Diameter × 0.7500″ (3/4″) Length of Cut Carbide Multi-Form 3/8″-24 Thread Milling Cutter, 4 Flutes, AlTiN Coated
Item #: GE9070066C3
Brand: Harvey Tool
Model #: 70066-C3
| Product Specifications | |
|---|---|
| Thread Size | 3/8″ |
| Shank Type | Round |
| Threads per Inch (TPI) | 24 |
| Coating | AlTiN |
| Thread Standard | UN |
| Flute Helix Angle (FHA) | 60 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.285″ |
| Usable Length (LU) | 3/4″ |
| Overall Length (OAL) | 3″ |
| Measurement Type | Fractional |
| Flute Count (NOF) | 4 |
| Tool Type | Multi-Form |
