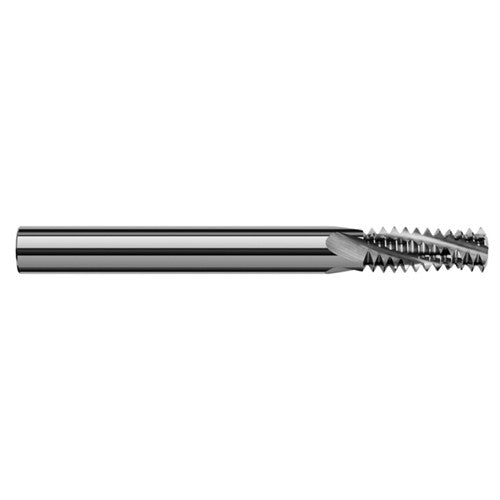

0.3050″ Cutter Diameter × 0.6250″ (5/8″) Length of Cut Carbide Multi-Form 1/4″, 3/8″-18 NPT Thread Milling Cutter, 4 Flutes
Item #: GE9070214
Brand: Harvey Tool
Model #: 70214
| Product Specifications | |
|---|---|
| Thread Size | 1/4 |3/8 |
| Shank Type | Round |
| Threads per Inch (TPI) | 18 |
| Coating | Uncoated |
| Thread Standard | NPT |
| Flute Helix Angle (FHA) | 60 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.305″ |
| Usable Length (LU) | 5/8″ |
| Overall Length (OAL) | 3″ |
| Measurement Type | Fractional |
| Flute Count (NOF) | 4 |
| Tool Type | Multi-Form |
