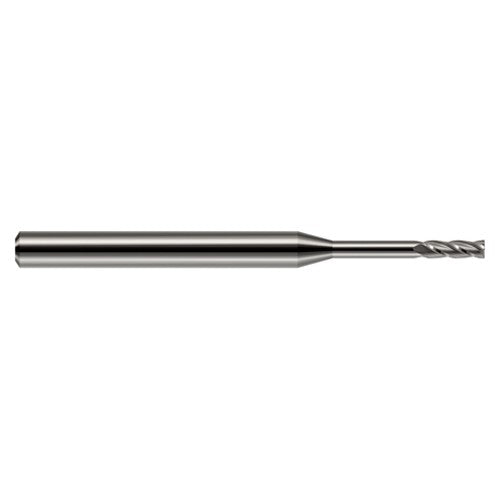

Miniature End Mills - Long Reach, Standard Flute - 0.0930″ (3/32″) Cutter Diameter × 0.2790″ Length of Cut × 0.6250″ (5/8″) Reach Carbide Square End Mill, 4 Flutes
Item #: GE9076493
Brand: Harvey Tool
Model #: 76493
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/32″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 0.279″ |
| Neck Length (LN) | 0.346″ |
| Overall Length (OAL) | 1-1/2″ |
| Length Group | Long Reach |
| Cutting Edge Material | Carbide |
| Flute Type | Standard |
| Coating | Uncoated |
| Decimal Equivalent | 0.09375″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
