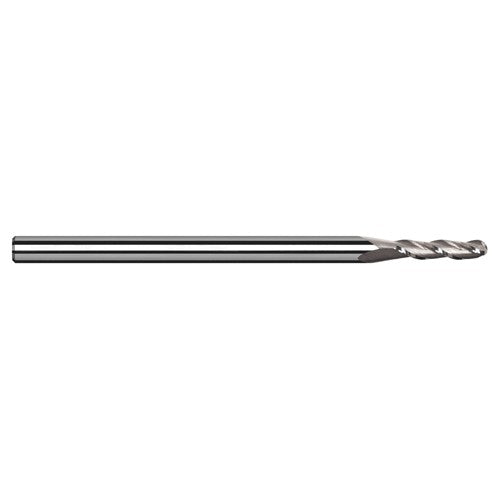

5/64″ Dia. × 1/8″ Shank × 13/32″ DOC × 2-1/2″ OAL, Carbide Uncoated, 3 Flute, Ballnose End Mill
Item #: GE90850078
Brand: Harvey Tool
Model #: 850078
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/64″ |
| Flute Count (NOF) | 3 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Depth of Cut Maximum (APMX) | 13/32″ |
| Length Group | 5D |
| Overall Length (OAL) | 2-1/2″ |
| End Shape | Ball Nose |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.078125″ |
| Coating | Uncoated |
| Measurement Type | Inch |
