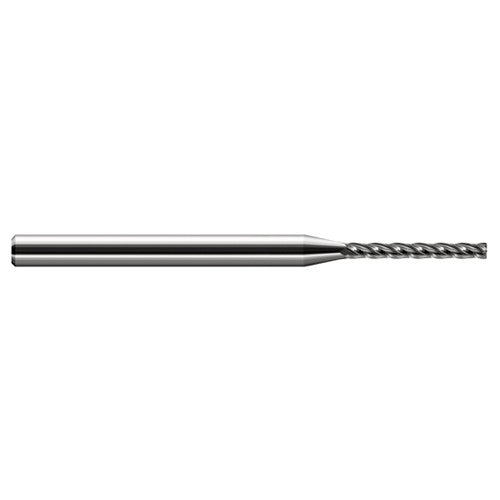

Miniature End Mills - Long Flute - 0.1180″ Cutter Diameter × 0.0050″ Radius × 0.9500″ Length of Cut Carbide Corner Radius End Mill, 4 Flutes
Item #: GE90905305
Brand: Harvey Tool
Model #: 905305
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.118″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Corner Radius (RE) | 0.005″ |
| Depth of Cut Maximum (APMX) | 0.95″ |
| Length Group | 8D |
| Overall Length (OAL) | 2-1/2″ |
| Flute Type | Long |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.118″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
