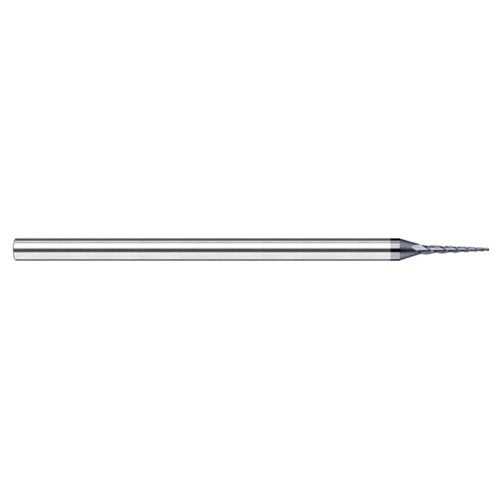

Miniature End Mills - Tapered Rib Cutters - 0.0150″ (1/64″) Cutter Diameter 0.1500″ Length of Cut 15 per side Carbide Tapered Ball End Mill, 3 Flutes, AlTiN Nano Coated
Item #: GE90916115C6
Brand: Harvey Tool
Model #: 916115-C6
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/64″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Depth of Cut Maximum (APMX) | 0.15″ |
| Coating | AlTiN |
| Flute Count (NOF) | 3 |
| Cutting Edge Material | Carbide |
| Overall Length (OAL) | 1-1/2″ |
| End Shape | Ball Nose |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Inch |
