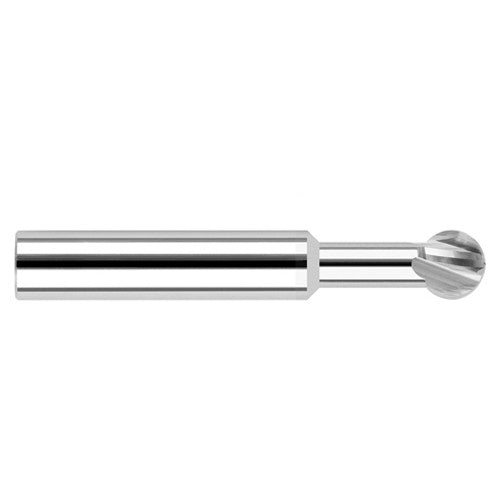

Undercutting End Mills - 0.1250″ (1/8″) Cutter Diameter × 0.6250″ (5/8″) Neck Length × 270° Carbide Undercutting End Mill, 4 Flutes
Item #: GE90922908
Brand: Harvey Tool
Model #: 922908
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| Usable Length (LU) | 0.732″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Corner Radius (RE) | 1/16″ |
| Depth of Cut Maximum (APMX) | 0.106″ |
| Neck Length (LN) | 5/8″ |
| Overall Length (OAL) | 2″ |
| End Shape | Spherical |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.125″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
