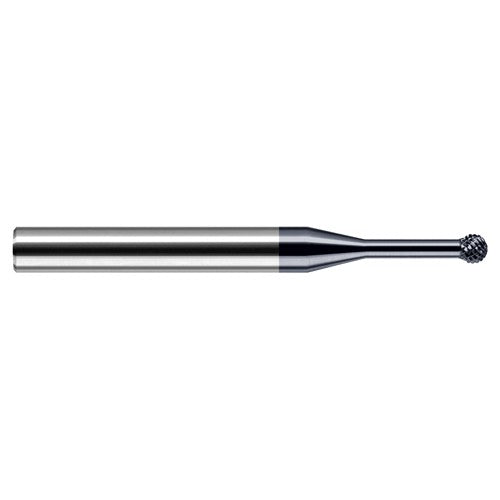

Undercutting End Mills - 0.0310″ (1/32″) Cutter Diameter × 0.0930″ (3/32″) Neck Length × 270° Carbide Deburring Undercut End Mill, 12 RH Teeth, 10 LH Teeth, AlTiN Coated
Item #: GE90926431C3
Brand: Harvey Tool
Model #: 926431-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/32″ |
| Usable Length (LU) | 0.119″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Corner Radius (RE) | 1/64″ |
| Depth of Cut Maximum (APMX) | 0.026″ |
| Neck Length (LN) | 3/32″ |
| Overall Length (OAL) | 1-1/2″ |
| End Shape | Spherical |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.03125″ |
| Coating | AlTiN |
| Measurement Type | Inch |
