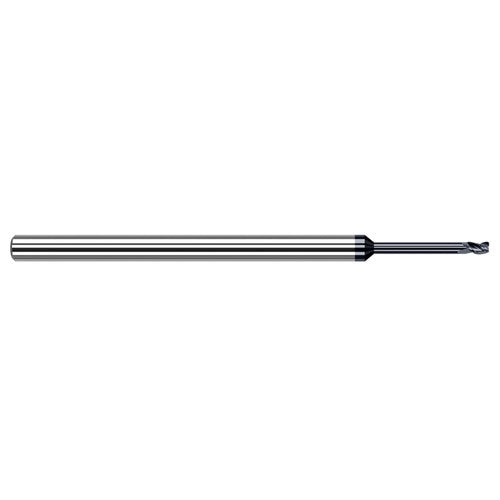

Variable Helix End Mills for Exotic Alloys - 0.0310″ (1/32″) Cutter Diameter × 0.0050″ Radius × 0.0470″ (3/64″) Length of Cut × 0.3120″ (5/16″) Reach Carbide Corner Radius End Mill for Exotic Alloys, 3 Flutes, AlTiN Nano Coated
Item #: GE90932531C6
Brand: Harvey Tool
Model #: 932531-C6
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/32″ |
| Usable Length (LU) | 5/16″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Applicable Material | Super-Alloys / Titanium |
| Depth of Cut Maximum (APMX) | 3/64″ |
| Corner Radius (RE) | 0.005″ |
| Overall Length (OAL) | 2-1/2″ |
| Length Group | 10D |
| Cutting Edge Material | Carbide |
| Flute Type | Stub |
| Coating | AlTiN |
| Decimal Equivalent | 0.03125″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| End Shape | Corner Radius |
