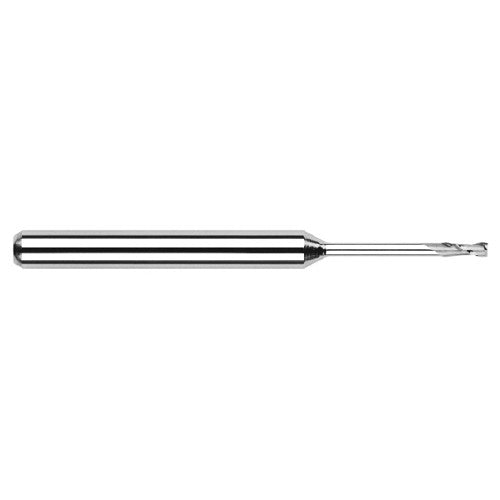

Miniature End Mills - Long Reach, Standard Flute - 0.1875″ (3/16″) Cutter Diameter × 0.5620″ (9/16″) Length of Cut × 1.0000″ (1″) Reach Carbide Square End Mill, 2 Flutes
Item #: GE90944612
Brand: Harvey Tool
Model #: 944612
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/16″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/16″ |
| Usable Length (LU) | 1″ |
| Depth of Cut Maximum (APMX) | 9/16″ |
| Neck Length (LN) | 0.438″ |
| Overall Length (OAL) | 2″ |
| Length Group | 5D |
| Cutting Edge Material | Carbide |
| Flute Type | Standard |
| Coating | Uncoated |
| Decimal Equivalent | 0.1875″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
