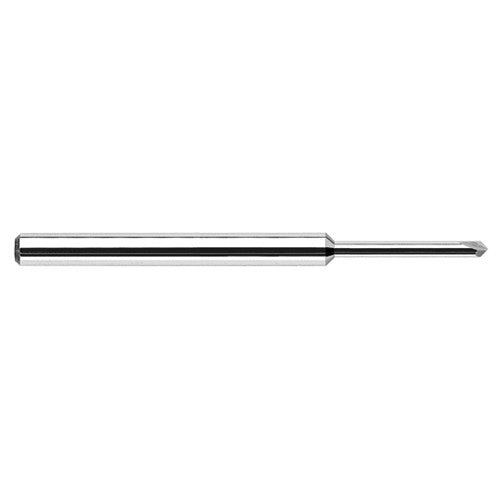

Chamfer Cutters - 0.0200″ Neck Diameter × 0.1600″ Reach × 45° per side Carbide Pointed Chamfer Cutter, 2 Flutes
Item #: GE90948545
Brand: Harvey Tool
Model #: 948545
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Flute Helix Angle (FHA) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.01″ |
| End Shape | Pointed |
| Overall Length (OAL) | 2-1/2″ |
| Usable Length (LU) | 0.16″ |
| Cutting Edge Material | Carbide |
| Length Group | 8D |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 2 |
