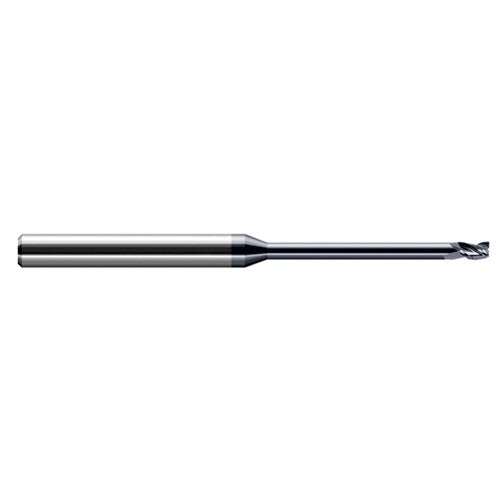

Miniature End Mills - Long Reach, Stub Flute - 0.0350″ Cutter Diameter × 0.0520″ Length of Cut × 0.3500″ Reach Carbide Square End Mill, 3 Flutes, AlTiN Coated
Item #: GE90982135C3
Brand: Harvey Tool
Model #: 982135-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.035″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Usable Length (LU) | 0.35″ |
| Depth of Cut Maximum (APMX) | 0.052″ |
| Length Group | 10D |
| Overall Length (OAL) | 2-1/2″ |
| Flute Type | Stub |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.035″ |
| Coating | AlTiN |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
