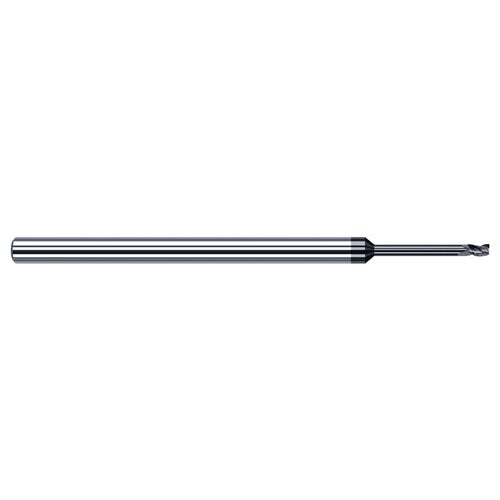

Variable Helix End Mills for Exotic Alloys - 0.0780″ (5/64″) Cutter Diameter × 0.1180″ Length of Cut × 0.4060″ (13/32″) Reach Carbide Square End Mill for Exotic Alloys, 3 Flutes, AlTiN Nano Coated
Item #: GE90985378C6
Brand: Harvey Tool
Model #: 985378-C6
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/64″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Usable Length (LU) | 13/32″ |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Applicable Material | Super-Alloys / Titanium |
| Overall Length (OAL) | 2-1/2″ |
| Length Group | 5D |
| Cutting Edge Material | Carbide |
| Flute Type | Stub |
| Coating | AlTiN |
| Decimal Equivalent | 0.078125″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
