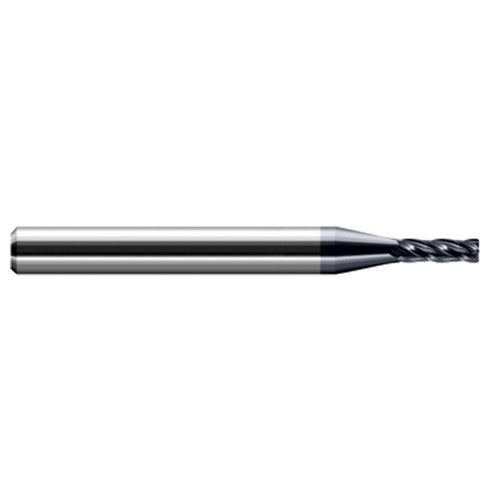

Miniature End Mills - Stub & Standard - 0.0300″ Cutter Diameter × 0.0050″ Radius × 0.0450″ Length of Cut Carbide Corner Radius End Mill, 4 Flutes, AlTiN Coated
Item #: GE90993830C3
Brand: Harvey Tool
Model #: 993830-C3
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.03″ |
| Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 0.045″ |
| Corner Radius (RE) | 0.005″ |
| Overall Length (OAL) | 1-1/2″ |
| Flute Type | Stub|Standard |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.03″ |
| Coating | AlTiN |
| Measurement Type | Inch |
