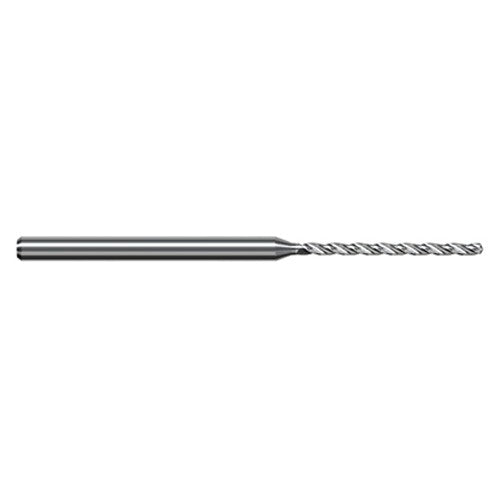

2.381 mm Dia. × 4 mm Shank × 33 mm Flute Length × 75 mm OAL, 12xD, 130°, TiB2, 3xD Flute, Round Solid Carbide Drill
Item #: GE90DQW0937C8
Brand: Harvey Tool
Model #: DQW0937-C8
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 2.381 mm |
| Shank Type | Round |
| Decimal Equivalent | 0.0937″ |
| Shape | High Performance |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.381 mm |
| Cutting Edge Material | Carbide |
| Length Group | 12xD |
| Tool Type | High Performance |
| Coating | TiB2 |
| Measurement Type | Metric |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Length Chip Flute (LCF) | 33 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Overall Length (OAL) | 75 mm |
| Point Angle (SIG) | 130 Degrees |
