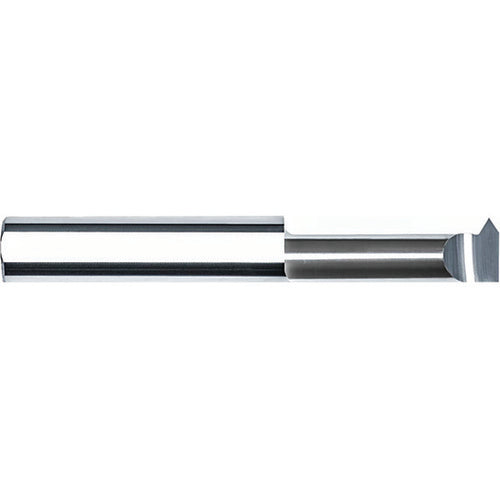

.090 X.400 DEPTH × 1/8 THREADMILL
Item #: GE97301365
Brand: Internal Tool
Model #: 30-1365
| Product Specifications | |
|---|---|
| Threads per Inch Minimum (TPIN) | 32 |
| Overall Length (OAL) | 2″ |
| Threads per Inch Maximum (TPIX) | 76 |
| Minimum Bore Diameter (DMIN) | 0.09″ |
| Overhang Minimum (OHN) | 0.4″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Cutting Length | 0.025″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Internal/External | Internal |
| Coating | Uncoated |
