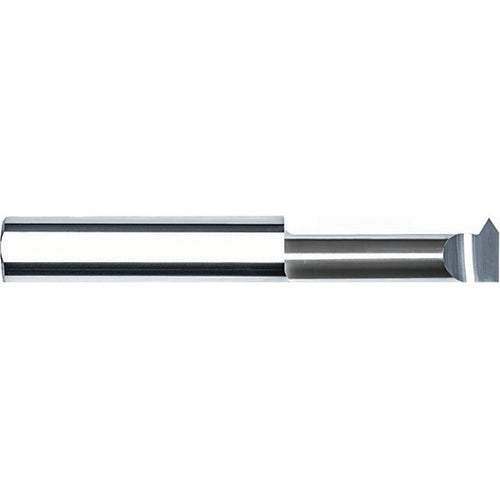

.200X1.000 THREADING
Item #: GE97301435C
Brand: Internal Tool
Model #: 30-1435-C
| Product Specifications | |
|---|---|
| Threads per Inch Minimum (TPIN) | 16 |
| Coating | AlTiN |
| Threads per Inch Maximum (TPIX) | 40 |
| Overall Length (OAL) | 2-1/2″ |
| Overhang Minimum (OHN) | 1″ |
| Minimum Bore Diameter (DMIN) | 0.2″ |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Cutting Length | 0.045″ |
