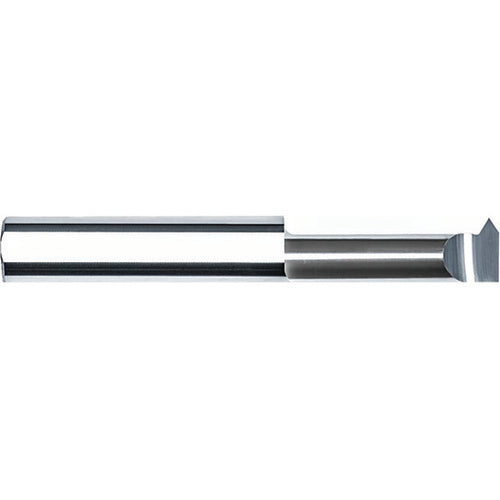

.290X1/2 THREADING TOOL
Item #: GE97301465
Brand: Internal Tool
Model #: 30-1465
| Product Specifications | |
|---|---|
| Threads per Inch Minimum (TPIN) | 12 |
| Overall Length (OAL) | 2-1/2″ |
| Threads per Inch Maximum (TPIX) | 40 |
| Minimum Bore Diameter (DMIN) | 0.29″ |
| Overhang Minimum (OHN) | 1/2″ |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide |
| Cutting Length | 0.07″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
| Internal/External | Internal |
| Coating | Uncoated |
