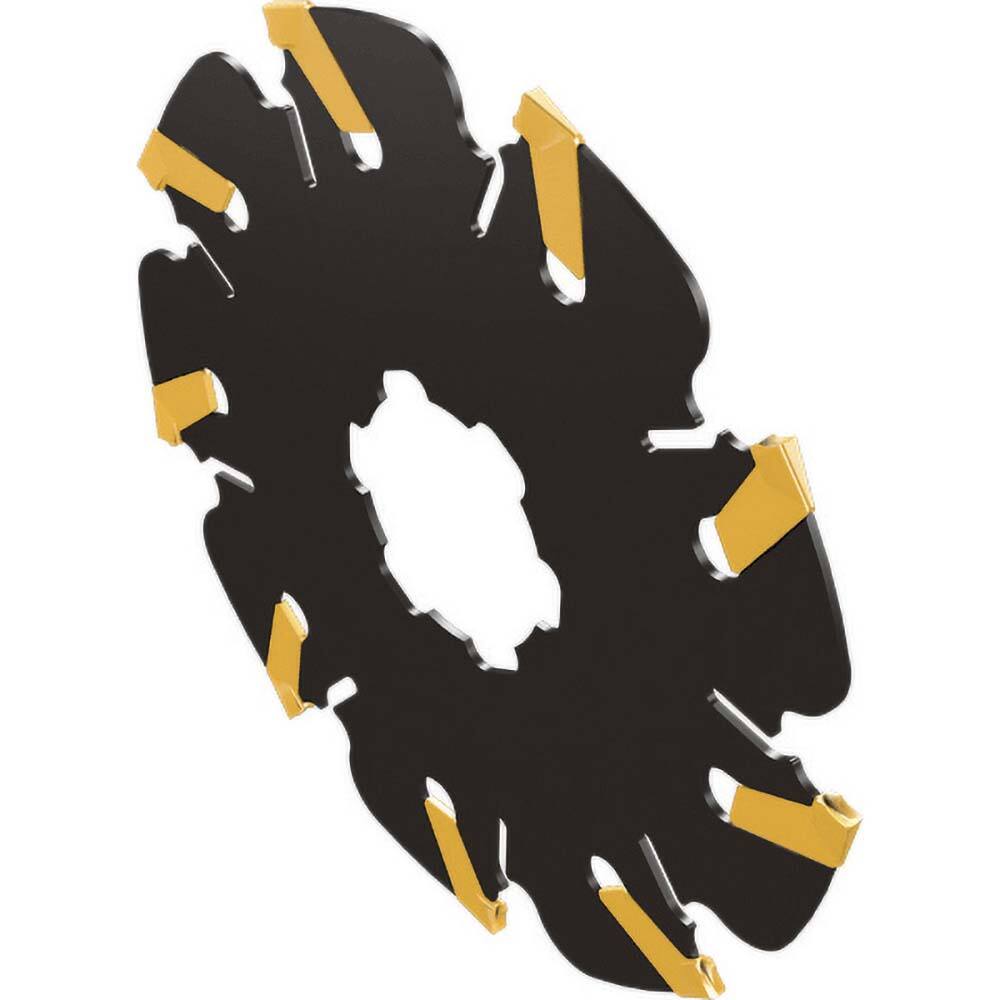

Iscar - Indexable Slotting Cutters Connection Type: Arbor Cutting Width (Decimal Inch): 0.0390
Item #: 16427643
Brand: Iscar
Model #: 3336587
Product Specifications
Indexable Slotting Cutters; Connection Type: Arbor ; Cutting Width (Decimal Inch): 0.0390 ; Maximum Depth of Cut (Decimal Inch): 0.6300 ; Cutter Diameter (mm): 63.00 ; Cutter Diameter (Decimal Inch): 2.4800 ; Hole Diameter (mm): 16.0000
| Connection Type | Arbor |
| Cutting Width (Decimal Inch) | 0.0390 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Cutter Diameter (mm) | 63.00 |
| Cutter Diameter (Decimal Inch) | 2.4800 |
| Hole Diameter (mm) | 16.0000 |
| Modular Connection Size | E25 |
| Number of Teeth | 12 |
| Toolholder Style | Arbor Mount |
| Series | GFT 1.0 |
| Insert Style | SLIMSLIT |
| Staggered Tooth | No |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right or Left Hand |
| Cutting Direction | Right or Left Hand |
| Insert Holding Method | Self Grip |
| Insert Holding Method | Self Grip |
| Maximum RPM | 1260.000 |
| Maximum RPM | 1260.000 |
| Minimum Cutting Width (Decimal Inch) | 0.0310 |
| Maximum Body Diameter (Decimal Inch) | 2.4800 |
| Complete Insert Compatibility2 | GFT 1.0J-0.1 |
| Complete Insert Compatibility1 | GFT 1.0J-0.1 |
| Arbor Hole Diameter (Decimal Inch) | 0.6300 |
