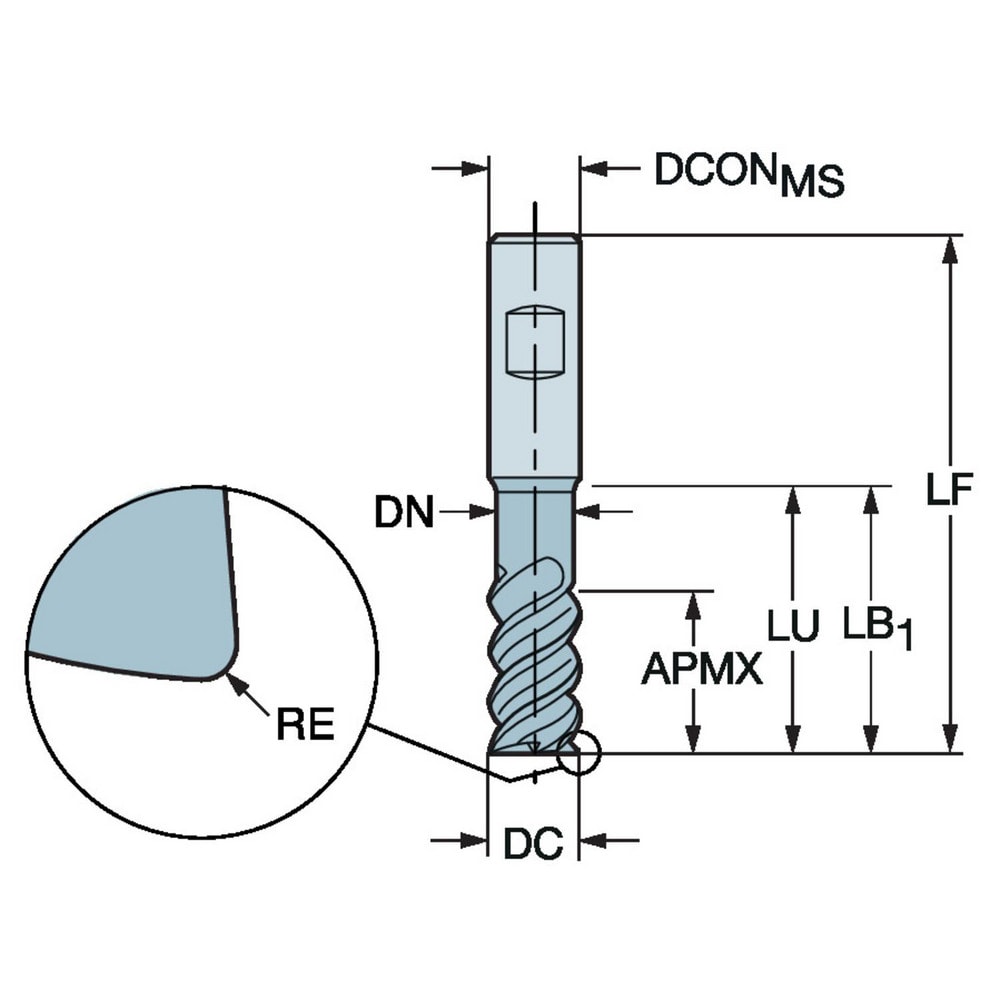

Brand: Sandvik Coromant / Part #: 8351789
Item #: 67700070
Brand: Sandvik Coromant
Model #: 8351789
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Corner Radius (mm) | 1.00 |
| Coating/Finish | TiAlCrSiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Single Or Double End | Single |
| Overall Length (mm) | 104.0000 |
| Length of Cut (mm) | 42.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Flute Direction | Right Hand |
| Helix Angle | 38 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Type | Standard |
| Extended Reach | No |
| Shank Type | Weldon |
| Centercutting | No |
| Material Removal Type | Roughing |
| Shank Diameter (mm) | 20.0000 |
| Neck Diameter (mm) | 19.000 |
| Neck Diameter (Decimal Inch) | 0.7480 |
| Minimum Helix Angle | 35 |
| Maximum Helix Angle | 45 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Series | CoroMill? Plura |
| Material Application | Cast Iron; Steel |
| Coating Classification | PVD |
| Helix Style | Variable |
| Manufacturers Catalog Number | 2F342-2000-100-PD P2BM |
