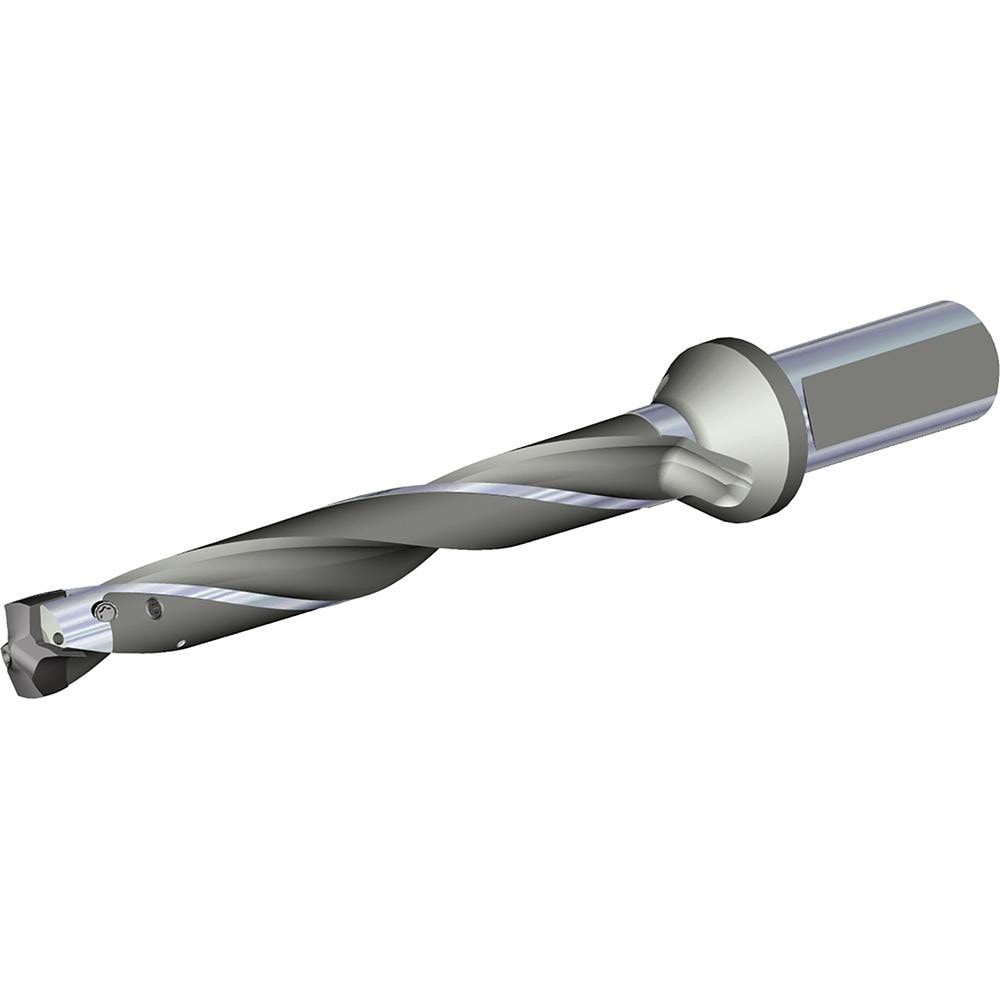

Brand: Widia / Part #: 6572257
Item #: 90310517
Brand: Widia
Model #: 6572257
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 1.0237 |
| Maximum Drill Diameter (Decimal Inch) | 1.0629 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 8.5039 |
| Shank Type | Flatted |
| Insert Style | TDMX |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Seat Size | K |
| Tool Material | Steel |
| Compatible Insert Style | TDMX |
| Compatible Insert Size Code | K |
| Overall Length (Decimal Inch) | 12.6377 |
| Series | TDMX |
| Toolholder Style | TDMX |
| Flute Length (Decimal Inch) | 8.5039 |
| Body Length (Decimal Inch) | 9.5787 |
| Shank Length (Decimal Inch) | 2.3622 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Hole Diameter (Decimal Inch) | 0.1575 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
