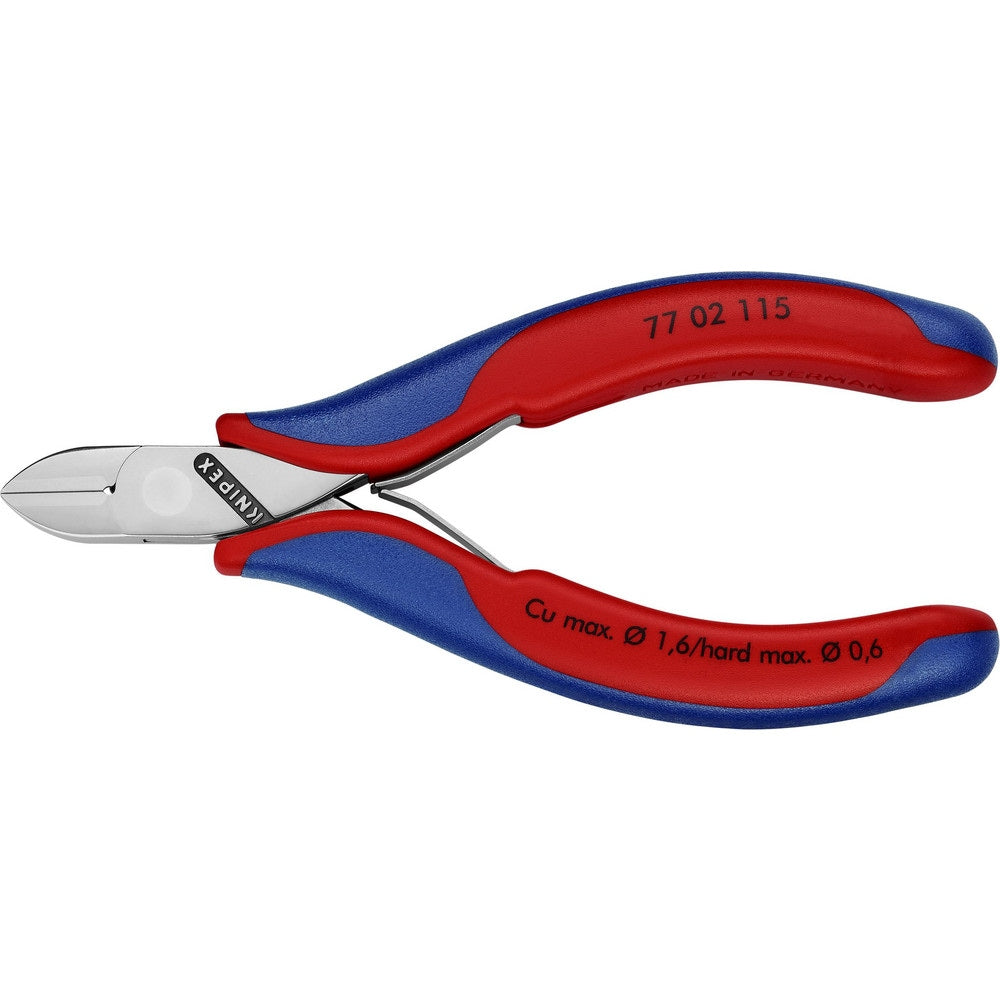

Cutting Pliers; Insulated: No
Item #: 39057013
Brand: Knipex
Model #: 77 02 115
Product Specifications
| Insulated | No |
| Overall Length (Inch) | 5-1/2 |
| Head Style | Cutter; Diagonal |
| Cutting Style | Semi-Flush; Bevel |
| Handle Color | Red; Blue |
| Overall Length Range | 4 to 6.9 in |
| Body Material | Steel |
| Tether Style | Not Tether Capable |
| Features | For fine cutting work in electronics and fine mechanics. Sturdy, zero-backlash box joint. Low friction double spring for gentle and even opening. The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools. Cutting edges induction hardened (approx. 60 HRC). Cutting capacity - up to 1/16" for soft wire, 3/64" for medium and up to 1/64" for hard wire. Semi-flush with small bevel. Ball bearing steel; laser-hardened cutting edges. |
| Jaw Length (Inch) | 35/64 |
| Capacity (Inch) | 1/16 |
| Jaw Width (Inch) | 7/16 |
| Handle Type | Dual Material |
| Non-sparking | No |
| Esd Safe | No |
| UNSPSC Code | 27112151 |
| Jaw Type | Diagonal Cutting |
| Color | Red/Blue |
| Spring | No |
| Maximum Jaw Opening Capacity (Decimal Inch) | 0.0630 |
| Jaw Thickness (Inch) | 19/64 |
