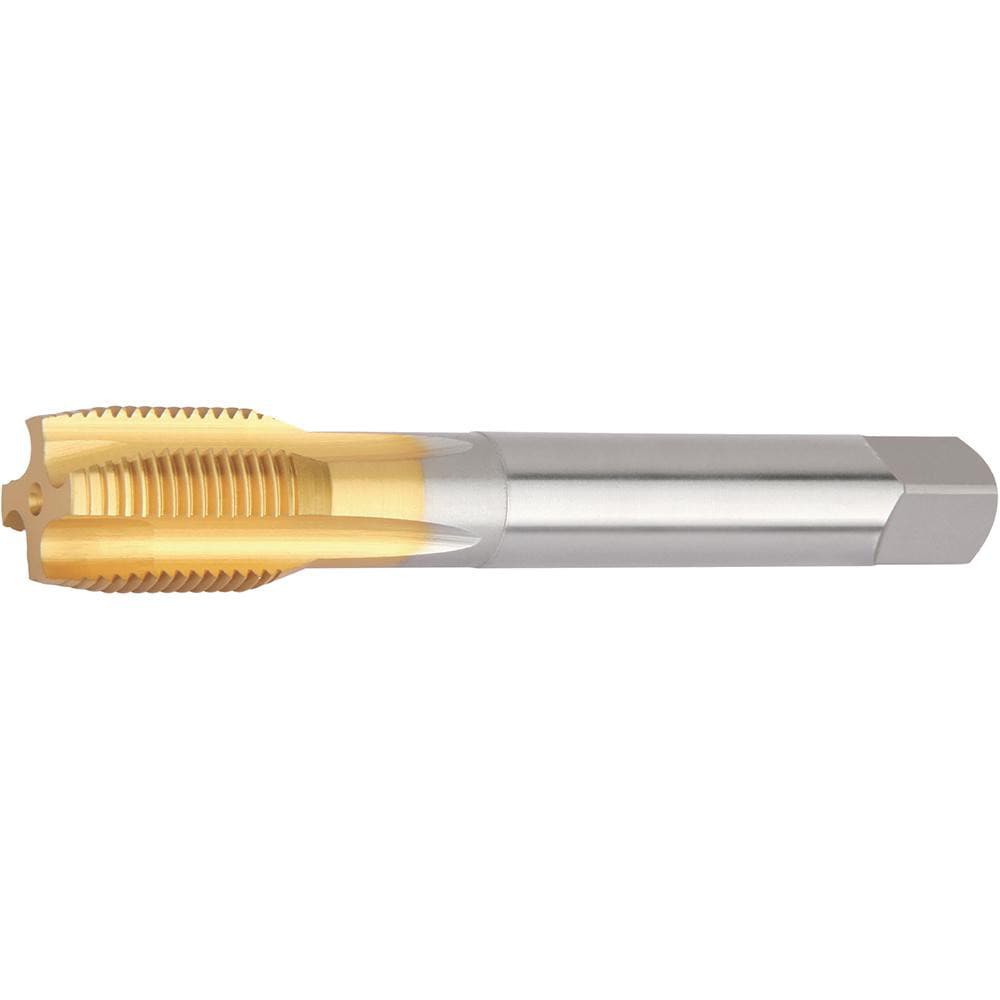

Brand: Widia / Part #: 6058785
Item #: 90224692
Brand: Widia
Model #: 6058785
Product Specifications
| Thread Standard | UNC |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 3.5400 |
| Threads per Inch | 28 |
| Thread Size (Inch) | 1/8-28 |
| Application | Metal |
| Tap Type | Machine Tap |
| Shank Diameter (Decimal Inch) | 0.2760 |
| Square Size (Decimal Inch) | 0.2170 |
| Chamfer | Taper |
| Thread Profile | Standard |
| Series | VT-SPO |
| Thread Length (Decimal Inch) | 0.5900 |
| Coating/Finish | TiN |
| Square Length (Decimal Inch) | 0.3300 |
| Projection (Decimal Inch) | 1.3800 |
| Thread Pitch (mm) | 0.91 |
| Thread Depth (Decimal Inch) | 1.3800 |
| Number Of Flutes | 3 |
