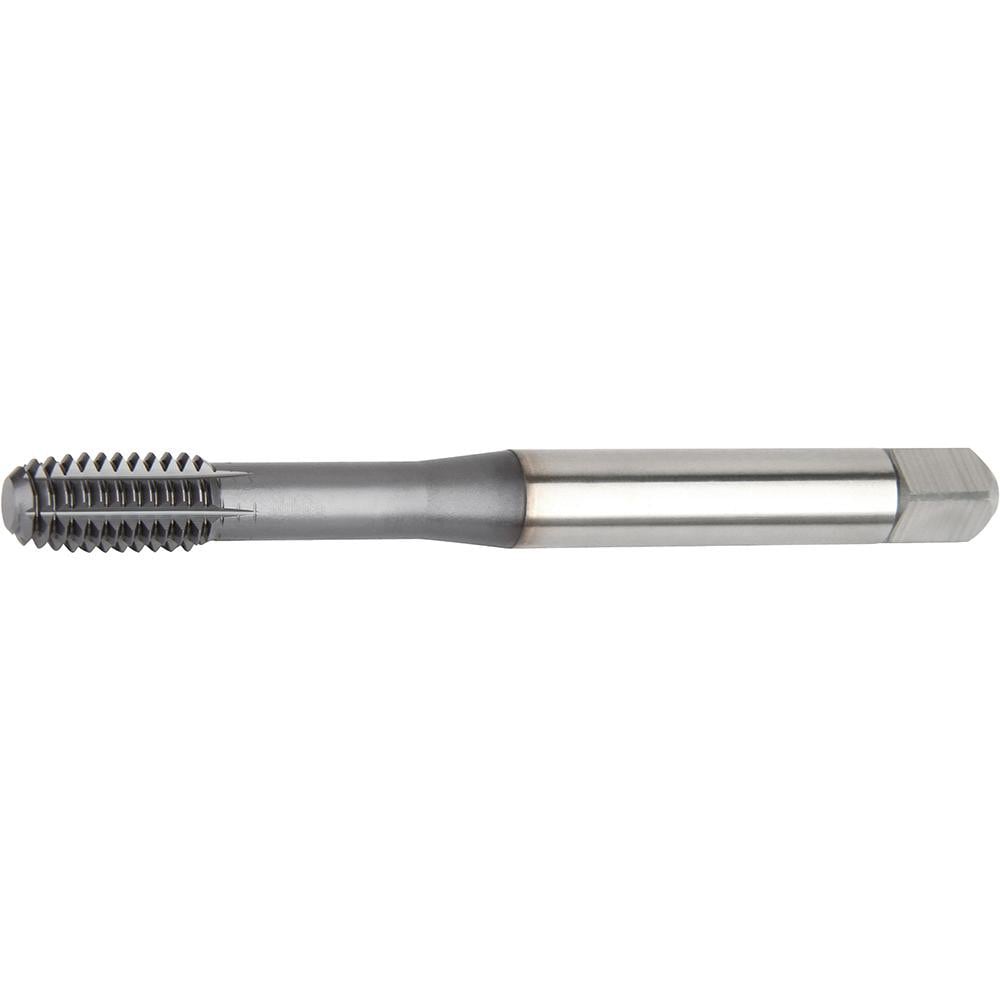

Brand: Widia / Part #: 5945021
Item #: 98990435
Brand: Widia
Model #: 5945021
Product Specifications
| Thread Size (mm) | M10x1.5 |
| Overall Length (mm) | 100.0000 |
| Chamfer | Semi-Bottoming |
| Coating/Finish | TiCN |
| Thread Limit | D10 |
| Thread Pitch (mm) | 1.50 |
| Thread Standard | Metric |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (mm) | 16.00 |
| Thread Depth (mm) | 39.00 |
| Thread Depth | 39.0000 |
| Shank Diameter (mm) | 9.6800 |
| Neck Length | 23.00 |
| Square Length (mm) | 11.20 |
| Material Application | Stainless Steel |
| Application | Metal |
| Series | GT24 |
| Tap Type | Blind |
| Tapping Depth (mm) | 39.00 |
| Shank Length (mm) | 54.500 |
| Square Size (mm) | 7.21 |
| Threads per Inch | 17 |
| Class Of Fit | 6H |
| Coolant Through | No |
