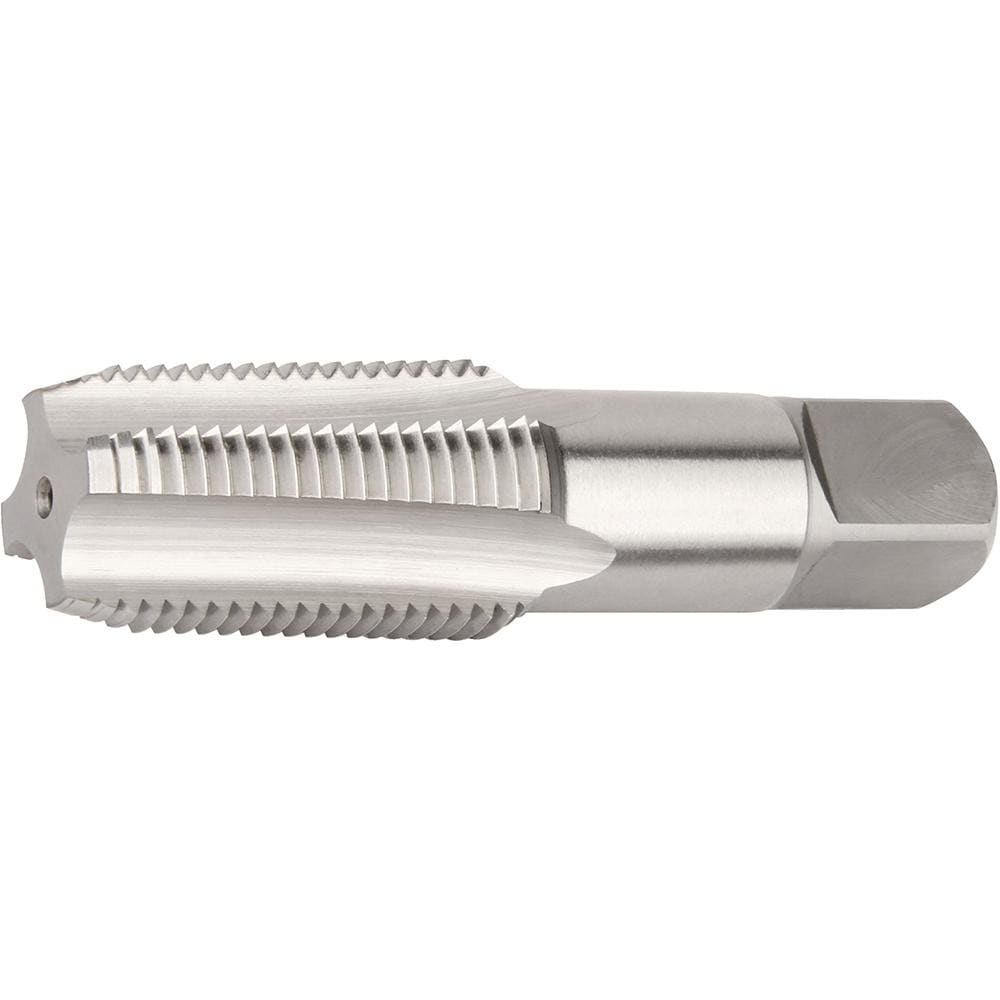

Brand: Widia / Part #: 5629648
Item #: 83169219
Brand: Widia
Model #: 5629648
Product Specifications
| Thread Size (Inch) | 3/8-18 |
| Overall Length (Decimal Inch) | 2.5600 |
| Chamfer | Standard |
| Thread Standard | NPT |
| Thread Pitch (Decimal Inch) | 0.0556 |
| Flute Direction | Right Hand |
| Helix Angle | 0 |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 1.0310 |
| Thread Depth (Decimal Inch) | 1.4350 |
| Shank Diameter (Decimal Inch) | 0.7000 |
| Square Length (Decimal Inch) | 0.5000 |
| Square Size (Decimal Inch) | 0.5000 |
| Projection (Decimal Inch) | 1.4350 |
| Application | Tapping |
| Material Application | Cast Iron; Steel |
| Series | VTSTR |
| Threads per Inch | 18.0 |
| Coating/Finish | Uncoated |
| Number Of Flutes | 4 |
