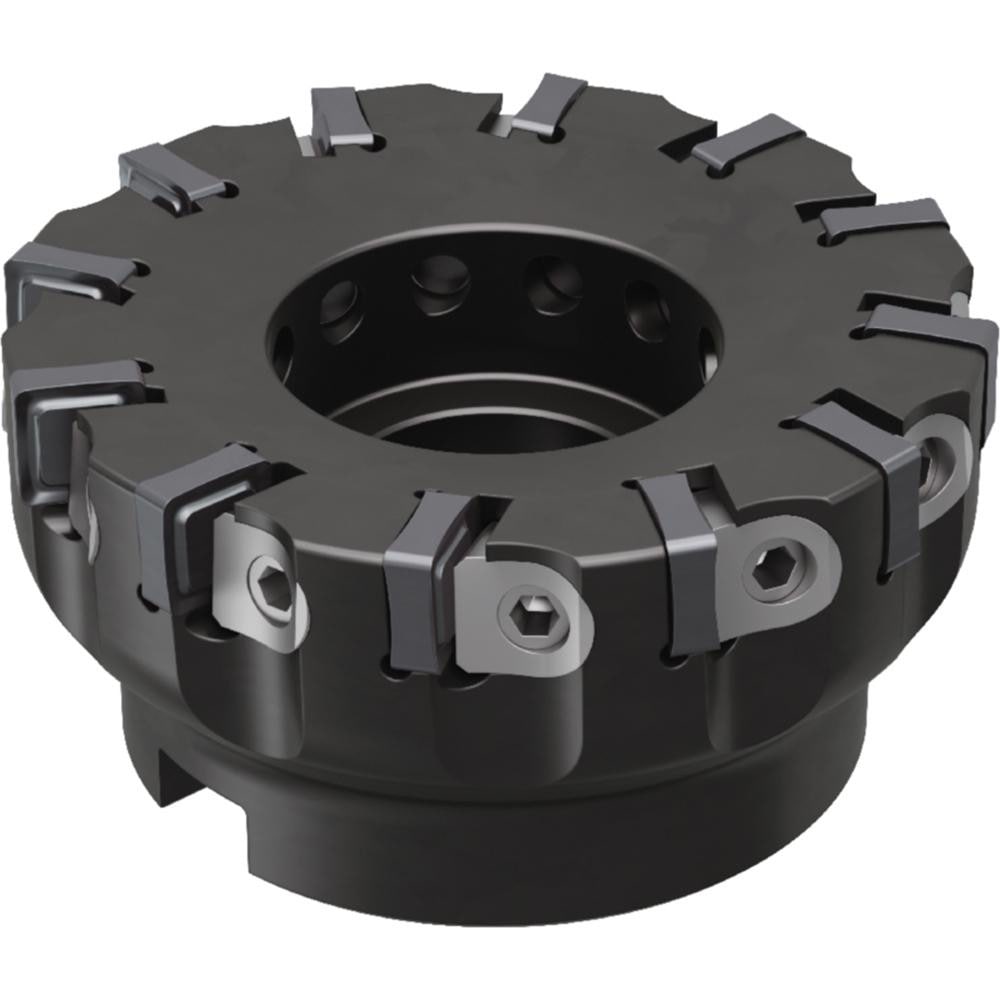

Brand: Widia / Part #: 6876426
Item #: 97571509
Brand: Widia
Model #: 6876426
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.39 |
| Maximum Depth of Cut (mm) | 11.50 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 89.000 |
| Compatible Insert Size Code | SN..1204 |
| Cutter Style | M8090 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Rake | Negative |
| Series | M8090 |
| Hub Diameter (mm) | 49.000 |
| Overall Height (Mm - 5 Decimals) | 40.00000 |
| Maximum Body Diameter (mm) | 61.40 |
| Maximum RPM | 6000.000 |
| Tool Application | Facing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Complete Insert Compatibility | SNHF120412SNMM |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 5 |
| Coolant Through | No |
| Number Of Flutes | 5 |
