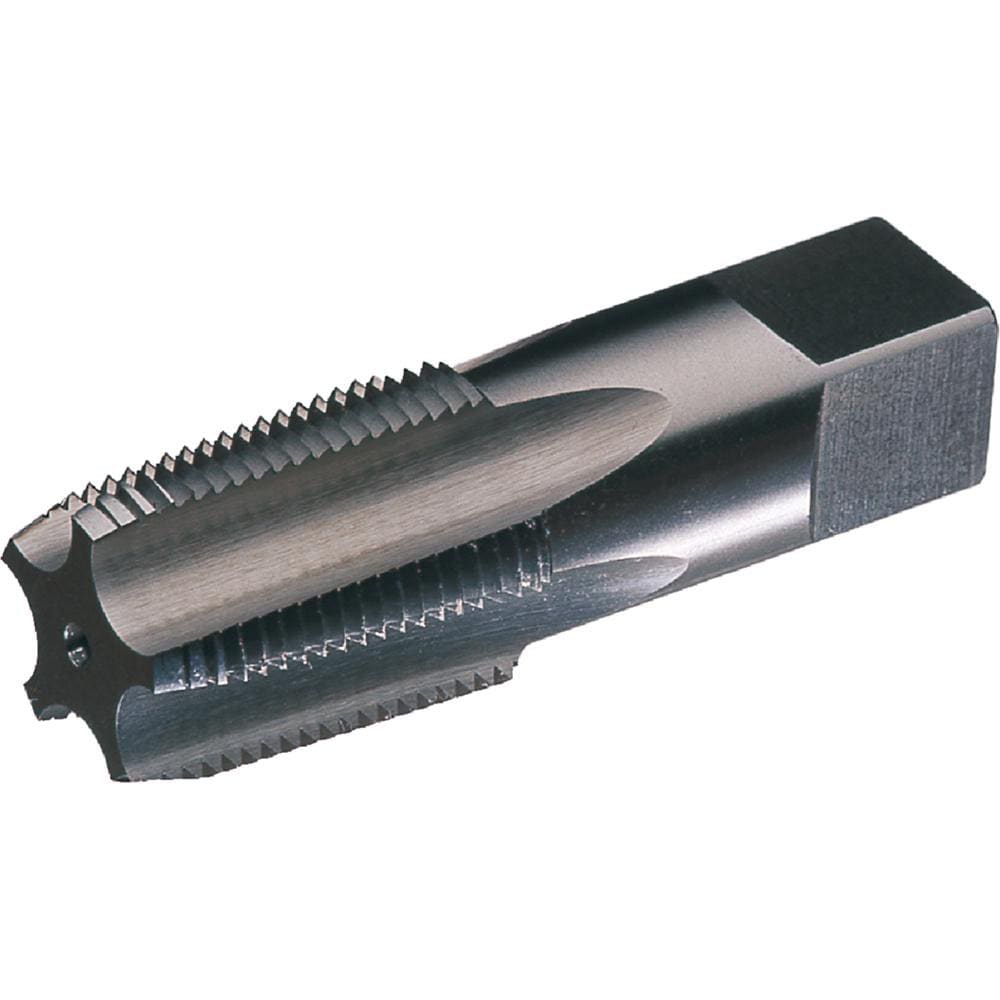

Brand: Widia / Part #: 2748179
Item #: 90228677
Brand: Widia
Model #: 2748179
Product Specifications
| Thread Standard | NPT |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 3.1300 |
| Threads per Inch | 14 |
| Thread Size (Inch) | 1/2-14 |
| Application | Metal |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Shank Diameter (Decimal Inch) | 0.6880 |
| Square Size (Decimal Inch) | 0.0000 |
| Chamfer | Standard |
| Series | 5820 |
| Thread Length (Decimal Inch) | 1.6560 |
| Coating/Finish | Uncoated |
| Thread Pitch (Decimal Inch) | 0.0714 |
| Square Length (Decimal Inch) | 0.0000 |
| Thread Depth (Decimal Inch) | 1.6560 |
| Number Of Flutes | 4 |
