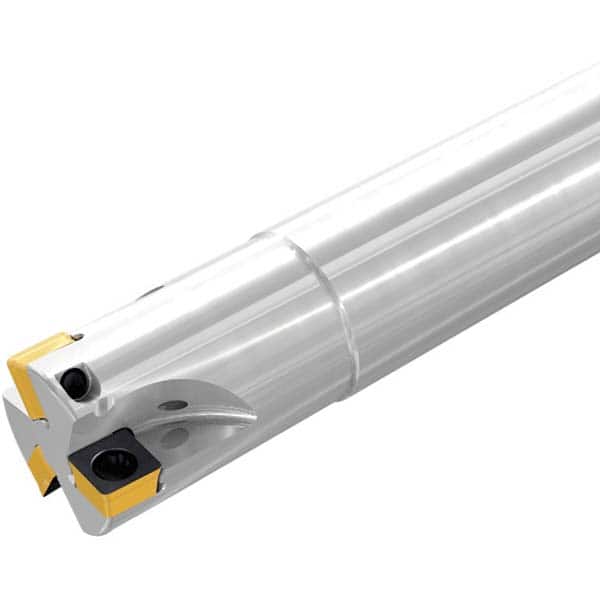

Iscar - Indexable Square-Shoulder End Mills Cutting Diameter (Decimal Inch): 0.3750 Shank Type: Cylindrical
Item #: 47512298
Brand: Iscar
Model #: 3340330
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 0.3750 ; Shank Type: Cylindrical ; Shank Diameter (mm): 9.5000 ; Shank Diameter (Inch): 0.375 ; Shank Diameter (Decimal Inch): 0.3750 ; Overall Length/Projection (Inch): 3
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 9.5000 |
| Shank Diameter (Inch) | 0.375 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length/Projection (Inch) | 3 |
| Series | E90SO |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 3.50 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Weldon Flat | No |
| Shank Length (Decimal Inch) | 3.0000 |
| Shank Length (mm) | 76.200 |
| Toolholder Material | Steel |
| Toolholder Material | Steel |
| Through Coolant | Coolant Through |
| Shank Diameter (Inch) | 0.375 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Series | E90SO |
| Overall Length (Decimal Inch) | 3.00000 |
| Insert Holding Method | Screw |
