4MT High Speed Precision Standard - Live Center - Exact Tooling

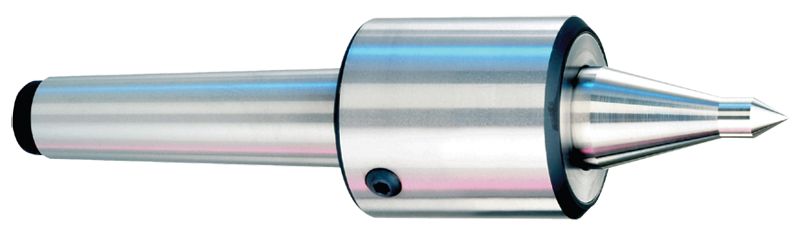

4MT High Speed Precision Standard - Live Center


Item #: HK2610684
Manufacturer: Royal Products
Mfg #: 10684

Technical Specifications:
*Accuracy: .0001 *Brand Name: Royal Products *Head Length: 2-11/16 *Max. RPM: 12000 *Mount: 4 MT *Overall Length: 2-1/2 *Point Diameter: 1-1/4 *Point Length: 2-1/2 *Point Style: Steel Tipped *Radial Load: 525 lbs *Style: High Speed Precision *Thrust Load: 1380 lbs *Tip Diameter: 1/2 *Type: Live Center

Description:
*High Speed Precision Live Center *A true high-speed live center " up to 12,000 RPM *Lubricated with lightweight spindle oil instead of grease for reduced turning resistance and lower operating temperatures *±0.00005" T.I.R. guaranteed *Bearing life is significantly extended with the exclusive Royal Roto-Shield™ coolant slinger and upgraded, long-life, spring-loaded seal that is resistant to abrasion, high temperatures and virtually all metalworking fluids *Three precision angular contact bearings are secured to the point with a locknut to form a rigid, preloaded assembly *The point extends into the body where it is supported by a needle roller bearing, which further increases rigidity, reduces point deflection, and dampens vibration *Low profile head provides excellent tool clearance *Body and point are hardened for strength and durability

Shipping Info:
*Actual Weight - 4.8400
$ 1,570.34
