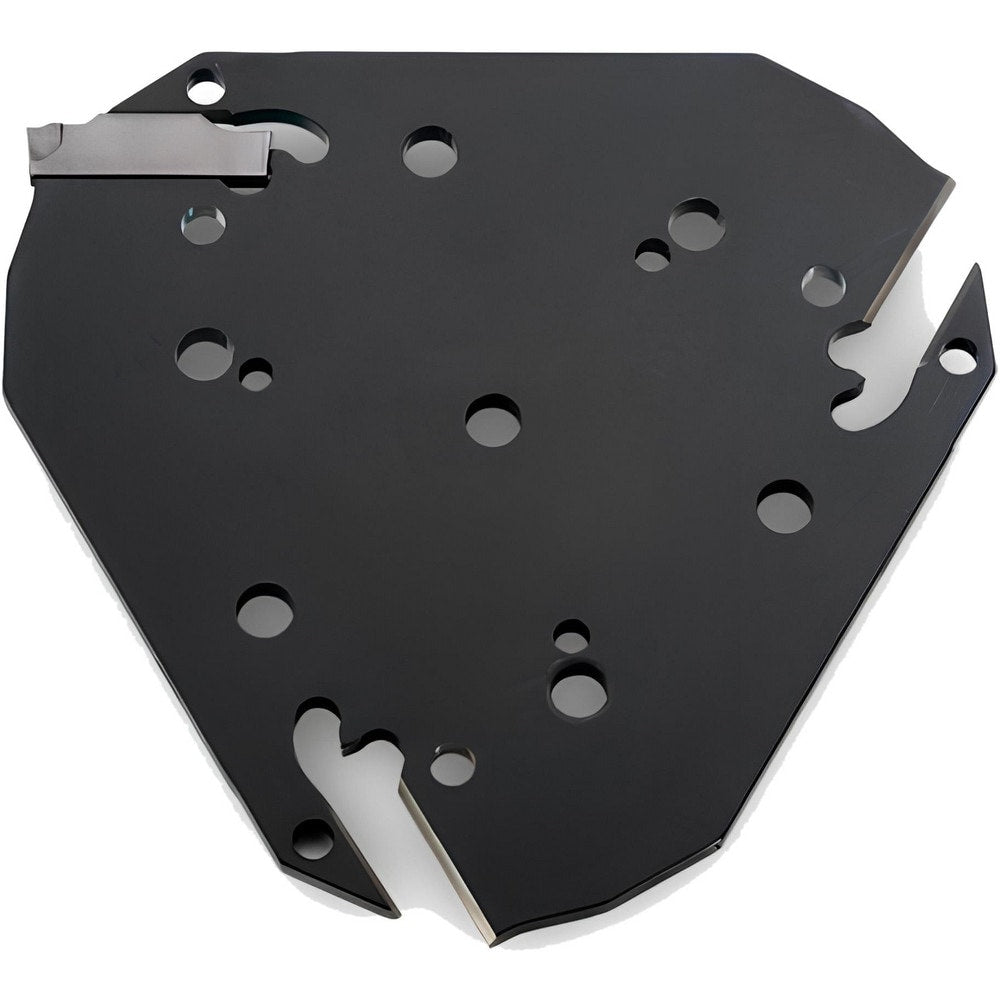

Brand: Ingersoll Cutting Tools / Part #: 6345210
Item #: 20767968
Brand: Ingersoll Cutting Tools
Model #: 6345210
Product Specifications
| End Type | Triple Pocket |
| Cutting Direction | Neutral |
| Hand | Neutral |
| Blade Width (Decimal Inch) | 0.0980 |
| Blade Style | TGTB |
| Compatible Insert Style | TDC; TSC; TDUF; TDV; TSJ; TDJ |
| Compatible Insert Size Code | 3 |
| Tool Material | Steel |
| Insert Holding Method | Spring Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 3.2300 |
| Series | TGTB |
| Tool Block Style | THTB |
| Insert Style | TDC; TSC; TDUF; TDV; TSJ; TDJ |
| Cutting Tool Application | Grooving; Parting |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 3 |
| Maximum Depth of Cut (Decimal Inch) | 1.6150 |
| Minimum Insert Width (Decimal Inch) | 0.0940 |
| Maximum Insert Width (Decimal Inch) | 0.1250 |
| Complete Insert Compatibility | TDUF3..; TDx3..; TSx3.. |
| Complete Tool Block/Toolholder Style Compatibility | THTBL19-D82-TB; THTBL25.4-D82-TB; THTBR19-D82-TB; THTBR25.4-D82-TB |
| Manufacturers Catalog Number | TGTBD82-3 |
| Insert Type | Cut-Off |
| Blade Type | Three-Edged Blade |
