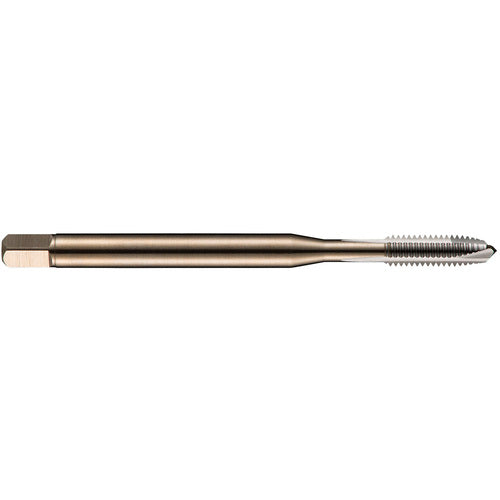

3/4-14 G(BSP) Machine Tap Spiral Point-Bright DIN 5156 Series EP40 E-code # EP403/4
Item #: HP400138632
Brand: Dormer
Model #: 5973947
| Product Specifications | |
|---|---|
| Tool Type | British Standard Pipe Fastening Taps |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Thread Diameter Size (TDZ) | 3/4″ |
| Flute Type | Spiral Point |
| Threads per Inch (TPI) | 14 |
| Coating | Bright |
| Thread Standard | G(BSP) |
| Cutting Edge Material | HSS-E-PM |
| Flute Count (NOF) | 4 |
| Standard | DIN 5156 |
| Overall Length (OAL) | 140 mm |
| Series/List # | EP40 |
| Thread Cutting Part Length (THL) | 28 mm |
| Thread Size | 3/4″ - 14 |
