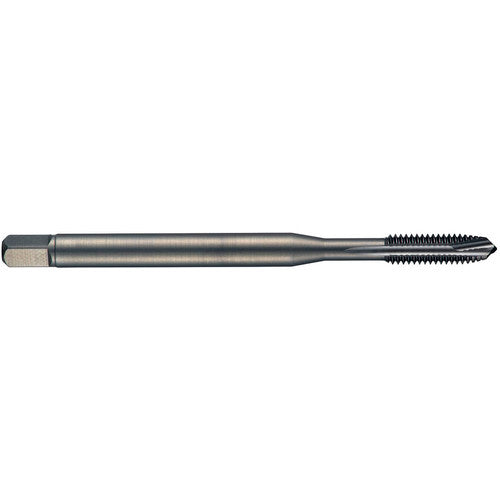

3/8-19 G(BSP) Cobalt Machine Tap Spiral Point-Steam Tempered DIN 5156 E-code # EP413/8
Item #: HP400138687
Brand: Dormer
Model #: 5973978
| Product Specifications | |
|---|---|
| Tool Type | British Standard Pipe Fastening Taps |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Thread Diameter Size (TDZ) | 3/8″ |
| Flute Type | Spiral Point |
| Threads per Inch (TPI) | 19 |
| Coating | Steam Tempered |
| Thread Standard | G(BSP) |
| Cutting Edge Material | HSS-E-PM |
| Flute Count (NOF) | 4 |
| Standard | DIN 5156 |
| Overall Length (OAL) | 100 mm |
| Series/List # | EP41 |
| Thread Cutting Part Length (THL) | 21 mm |
| Thread Size | 3/8″ - 19 |
