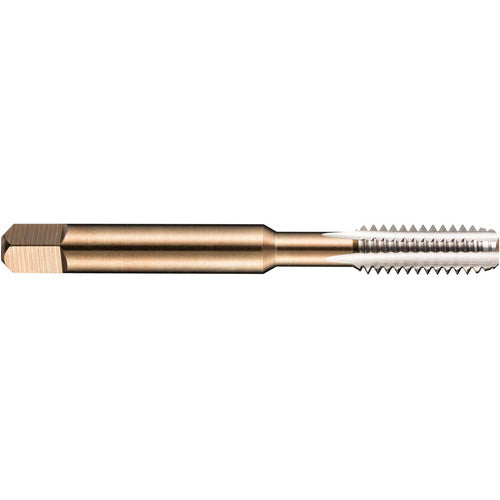

Dormer HSS Bright M Machine Tap Straight Flute ISO 529 Series E500 E-code # E500M5.5X.9NO1
Item #: HP430159996
Brand: Dormer
Model #: 5976854
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M5.5 |
| Tool Type | Machine Tap |
| Thread Pitch (TP) | 0.9 mm |
| Coating | Bright |
| Thread Standard | M |
| Tapping Prehole Diameter (Pre-hole) | 4.6 mm |
| Overall Length (OAL) | 62 mm |
| Flute Length | 12 mm |
| Thread Cutting Part Length (THL) | 12 mm |
| Flute Type | Straight |
| Usable Length (LU) | 21 mm |
| Style | Taper |
| Connection Diameter Machine Side (DCONMS) | 5.6 mm |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Measurement Type | Metric |
| Cutting Edge Material | HSS |
| Series/List # | E500 |
| Standard | ISO 529 |
| Thread Size | M5.5 × 0.9 |
